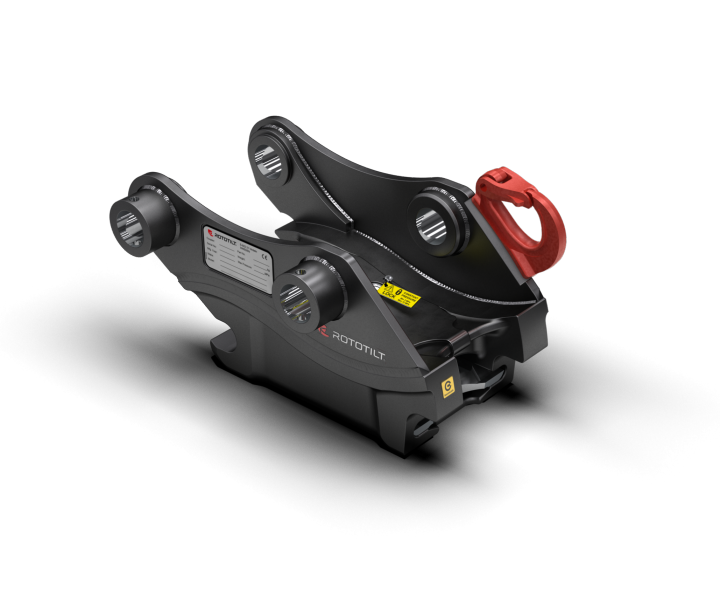

Machine coupler S40

As each excavator has its own excavation geometry, it is important with an adapted machine coupler dimensioned to support this. The design with welded side plates ensures that the machine coupler is optimised according to the size of base machine/excavator

Rototilt’s machine couplers are manufactured with a shell of quenched and tempered cast steel with a wide attachment for a long service life. A heavy-duty locking wedge design gives a completely play-free machine coupler with well protected and few component parts


Technical data

Weight, from 31 kg 31 kg
Permitted lock pressure, min 30 bar 30 bar
Permitted lock pressure, max 120 bar 120 bar
Opening pressure 300 bar 300 bar
Permitted positive torque 35 kNm 35 kNm
Permitted negative torque 23 kNm 23 kNm
Permitted max. load, lift hook 2000 kg 2000 kg
Max. weight class, base machine/excavator 6000 kg 6000 kg

Measurement specification

MC-S40

Brochure 2018

English
Download

The products in the photos may have additional accessories and features. Technical data and weights may vary depending on the configuration and equipment. We reserve the right to change specifications or designs without prior notice and assume no responsibility for any actual errors that may occur. There may be variations in product programs and equipment standards between the markets. For more information concerning current product specifications, local adaptations and special equipment, please contact your nearest sales office.
