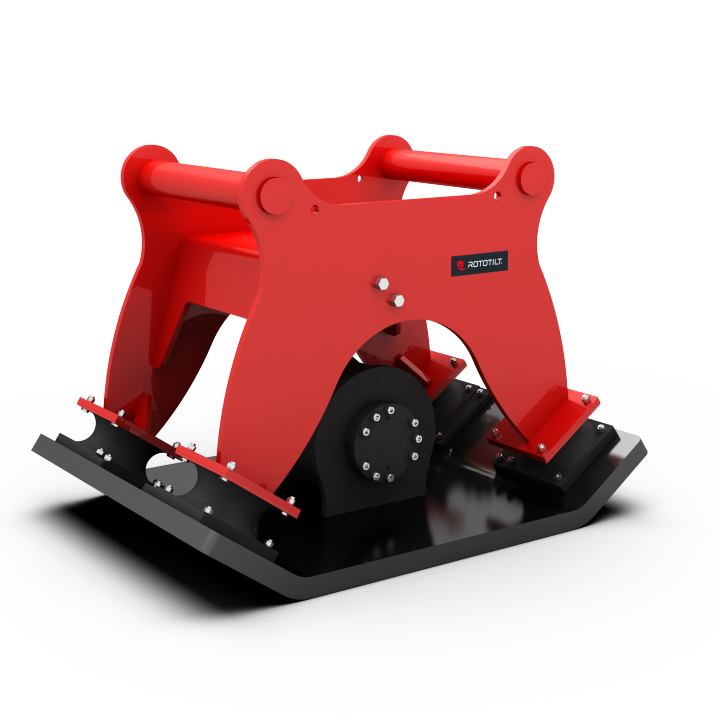

Rototilt's compactor makes it easier to compress and stabilise ditches, excavations, slopes and uneven surfaces. You also eliminate the risk of injuries as no person needs to be present in the work area. Rototilt's machine-mounted compactor meets the demand for high pressure in the return line and is optimised for use together with our tiltrotators.
By supplementing the machine and tiltrotator with a compactor, the contractor can complete assignments both more quickly and with fewer personnel. As there is no need for additional personnel or equipment when working in excavations or on banks, the risk of personal injury is also eliminated. This also means that you save time and money excavating and restoring (as legal requirements for the incline may apply when there are personnel down in the trench).
As well as working in excavations and on banks, Rototilt's compactors are also a more efficient solution on 'sticky' ground or uneven surfaces. In fact, it is only on large surfaces with absolutely no incline that a traditional compactor can measure up to Rototilt's compactors. When driving on coarse material, the excavator-mounted compactor works significantly better and handles large stones more easily.
Your compactor with QuickChange™
You can equip your compactor with a hydraulic attachment frame to quickly change tools without leaving the cab. The QuickChange™ attachment frame gives you several benefits and saves time.
Extremely stable attachment frame for the coupling unit ensures perfect connection of the hydraulic couplings to tiltrotators or machine couplers. Hardened shafts for maximum service life.
|Min. machine weight||44090 lb 20000 kg|
|Max. machine weight||66140 lb 30000 kg|
|Vibration force||14330 lb 6500 kg|
|Vibration frequency||33 Hz 33 Hz|
|Weight||1047 lb 475 kg|
|Lenght||41 in 1040 mm|
|Width||30 in 750 mm|
|Height||30 in 750 mm|
|Rec. working pressure||2176 psi 150 bar|
|Min hydr. flow||18 gpm 70 l/min|
|Max hydr. flow||66 gpm 250 l/min|
|Max pressure||3626 psi 250 bar|
|Compatible quick coupler||QC60-4, S60, S70, S80, S2, S1, QC70, QC70-55, QC65, QC60-5, QC80, Universal QC60-4, S60, S70, S80, S2, S1, QC70, QC70-55, QC65, QC60-5, QC80, Universal|
The products in the photos may have additional accessories and features. Technical data and weights may vary depending on the configuration and equipment. We reserve the right to change specifications or designs without prior notice and assume no responsibility for any actual errors that may occur. There may be variations in product programs and equipment standards between the markets. For more information concerning current product specifications, local adaptations and special equipment, please contact your nearest sales office.
