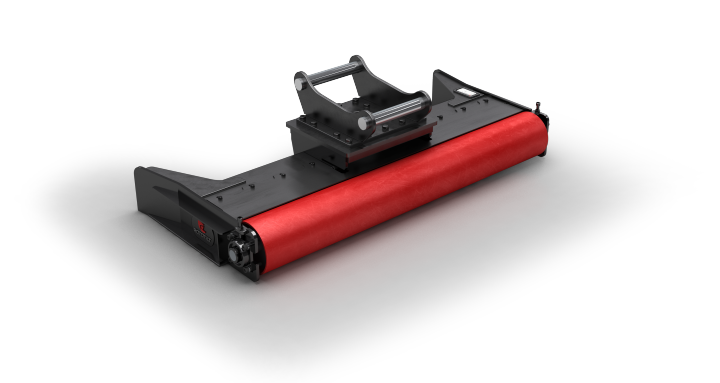

Grading beam GB2000
Rototilt’s grading beam optimises grading work on roads and larger land areas. This is a tool optimised for Rototilt’s tiltrotators and machine couplers, and in combination this tiltrotator system offers perfect grading results without the need to move the machine as often.
The grading beams, which are available in several different widths, are made from highly durable steel and come with an adjustable roller and bearings of the highest quality. Wear parts in wear-resistant HB450 steel ensure a long service life. What’s more, our grading beams are ready for the installation of an excavator GPS system, which together with Rototilt’s RPS function enables optimal control.
NOTE: Rototilt grading beam together with the tiltrotator is an effective combination. It is important to only use the grading beam for surface leveling as otherwise the tiltrotator will be exposed to high loads. When moving larger masses, Rototilt's bucket program is recommended.
|Part number||5412650 5412650|
|Weight||948 lb 430 kg|
|Diameter||9.7 in 245 mm|
|Depth||52 in 1320 mm|
|Height||15 in 374 mm|
|Width||79 in 2000 mm|
|Quick Coupler||S45, S50, S60, QC60-4, QC45-4, QC60-5, QC45-5, QC45 RR, QC60-5 RR S45, S50, S60, QC60-4, QC45-4, QC60-5, QC45-5, QC45 RR, QC60-5 RR|
The products in the photos may have additional accessories and features. Technical data and weights may vary depending on the configuration and equipment. We reserve the right to change specifications or designs without prior notice and assume no responsibility for any actual errors that may occur. There may be variations in product programs and equipment standards between the markets. For more information concerning current product specifications, local adaptations and special equipment, please contact your nearest sales office.
