Rototilt Control Systems

The right control system can make all the difference in your daily work. Rototilt’s control systems allow integration with your excavation system and improve your operating experience and safety when using a tiltrotator.

User-friendly and innovative solutions

The choice of control system can be one of the most important decisions to ensure that your investment will achieve the desired result. Our latest innovation, RC™ System, has been developed to transform your excavator and your day-to-day work. Especially in combination with our other innovative solutions, like the award-winning SecureLock™ safety solution, the RPS positioning solution, the High-Flow Swivel (HFS) and the patented High Flow Controller (HFC) for greater flexibility when using tools that require a high flow.

Discover RC™ System from Rototilt®

Demands for new technology, operability and user friendliness are growing ever higher. At the same time, there is an increasing need for more advanced control systems that can be integrated with the machine’s excavation system. This is where RC™ System, our latest and most innovative control system, comes in. RC™ System is a proportional control system that allows you to harness the tiltrotator’s functions in one and the same excavation movement. Together with the pressure-compensated hydraulics in the RC series, you can use the tiltrotator with greater precision than ever before. The fact that RC™ System is tailored to the machine means that compatibility and functionality are ensured. You also have the opportunity to govern certain machine functions using RC™ Joysticks, such as track or wheel control.

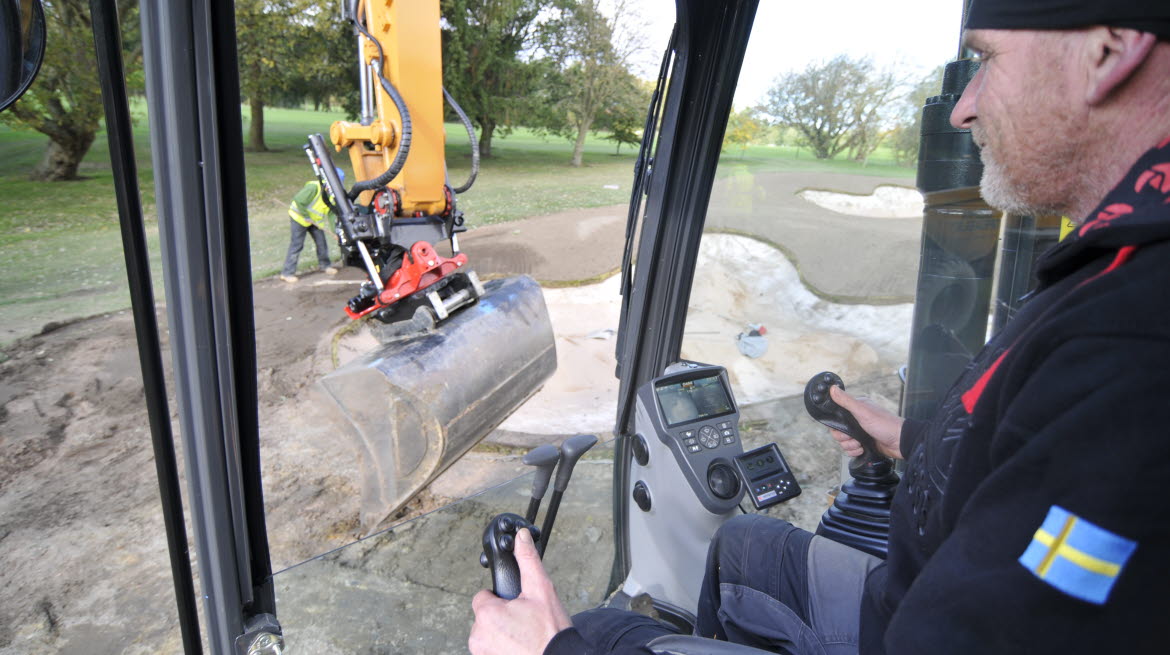

The latest technology in the excavator’s cab

RC™ System has a new 4.3 inch touch display that is larger than its predecessor. The display has been provided with a user-friendly interface for easy operation, as well as new functions adapted for the excavators and jobs of the future. Auto-calibration enables fast and efficient installation, and the display’s built-in lock operation buttons allow you to operate SecureLock™ with just two keystrokes. Your favourite features are still there, such as home position, angle display and the pulse function, but we have added even more benefits to enhance your work and improve your day-to-day life – such as remote assistance with the RC™ Connect app.

RC™ Joysticks

RC™ Joysticks have been developed with your operating experience in mind. Our joysticks boast good ergonomics, premium materials and considerable opportunities for personal adaptation.

Proportional

RC™ System is a proportional control system that allows all the tiltrotator’s functions to be controlled in one and the same excavation movement.

Home position

Return to a predetermined position with the simple push of a button.

Pulse function

RC™ System’s pulsating and shaking function means that you can, for example, spread material evenly from your bucket.

Angle display

The angle display shows the angle of the tiltrotator and can be calibrated so that it is optimised for the bucket used by the operator, for example.

Operator settings

The adaptation of hydraulics and handles provides the opportunity for personalised settings, where you can also adjust the speed of rotation, tilt, grapple module, extra function and valve block shunt.

Auto-calibration

Auto-calibration for optimum settings based on the machine’s hydraulics during installation.

Automatic Grade Control

Time-saving function in RPS that automatically adapts the tool’s tilt angle according to the model in the excavation system.

Security lock

RC™ System and SecureLock™ ensure correct coupling of tools and monitor the connection continuously.

Proportional

RC™ System is a proportional control system that allows all the tiltrotator’s functions to be controlled in one and the same excavation movement.

Home position

Return to a predetermined position with the simple push of a button.

Pulse function

RC™ System’s pulsating and shaking function means that you can, for example, spread material evenly from your bucket.

Angle display

The angle display shows the angle of the tiltrotator and can be calibrated so that it is optimised for the bucket used by the operator, for example.

Operator settings

Auto-calibration

Auto-calibration for optimum settings based on the machine’s hydraulics during installation.

Automatic Grade Control

Time-saving function in RPS that automatically adapts the tool’s tilt angle according to the model in the excavation system.

Security lock

RC™ System and SecureLock™ ensure correct coupling of tools and monitor the connection continuously.

Show More Reasons Hide More Reasons

Integration with your excavation system

When you combine a control system and tiltrotator together with an excavation system and your machine, you can work smarter. Rototilt’s positioning solution, RPS, together with your excavation system, shows the exact position of the tool in real time. This allows you to measure and control your assignments, at the same time as increasing your efficiency. RPS has been tailored to the industry’s leading excavation systems, such as Leica, Topcon, Trimble, MOBA/Novatron, L5, DigAssist, DigPilot, iDig, Makin 3D, UniControl and XL Pro. This allows you to use the tiltrotator’s full range of movement in the excavation system. Always contact your dealer for current compatibility with excavation systems and specifications for tiltrotators, as local variations may occur.

TE™ and TLE™ – basic control systems

For those who operate an excavator with dual hydraulic circuits, we have developed our basic control systems TE™ and TLE™ (Tilt-Extra and Tilt-Lock-Extra). Directional valves enable switching between the tilt function and an additional hydraulic outlet on your tiltrotator.
