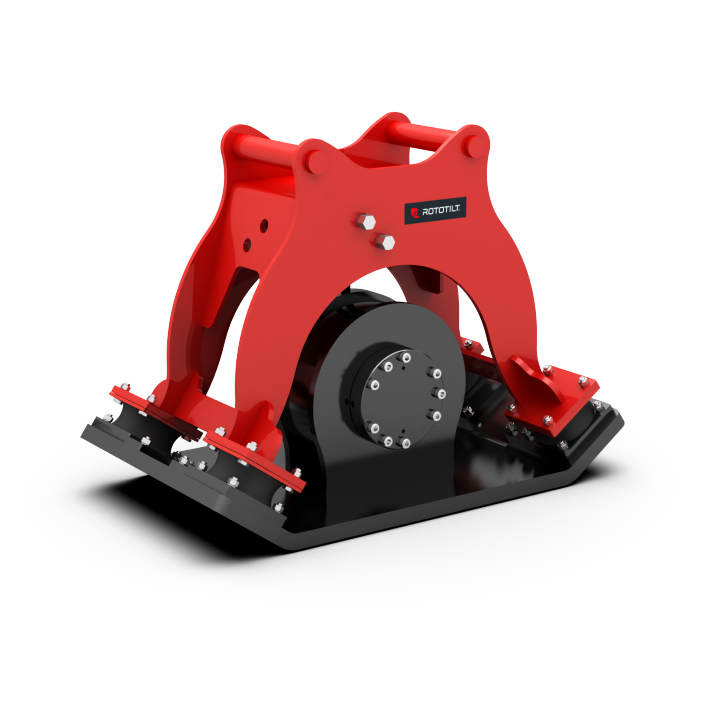

Compactor C22

Rototilt's compactor makes it easier to compress and stabilise ditches, excavations, slopes and uneven surfaces. You also eliminate the risk of injuries as no person needs to be present in the work area. Rototilt's machine-mounted compactor meets the demand for high pressure in the return line and is optimised for use together with our tiltrotators.

By supplementing the machine and tiltrotator with a compactor, the contractor can complete assignments both more quickly and with fewer personnel. As there is no need for additional personnel or equipment when working in excavations or on banks, the risk of personal injury is also eliminated. This also means that you save time and money excavating and restoring (as legal requirements for the incline may apply when there are personnel down in the trench).

As well as working in excavations and on banks, Rototilt's compactors are also a more efficient solution on 'sticky' ground or uneven surfaces. In fact, it is only on large surfaces with absolutely no incline that a traditional compactor can measure up to Rototilt's compactors. When driving on coarse material, the excavator-mounted compactor works significantly better and handles large stones more easily.


Technical data

Min. machine weight 6614 lb 3000 kg
Max. machine weight 22045 lb 10000 kg
Vibration force 4850 lb 2200 kg
Vibration frequency 33 Hz 33 Hz
Weight 419 lb 190 kg
Lenght 31 in 780 mm
Width 18 in 450 mm
Heigh 24 in 600 mm
Rec. working pressure 150 bar 150 bar
Min hydr. flow 5.3 gpm 20 l/min
Max hydr. flow 66 gpm 250 l/min
Max pressure 250 bar 250 bar
Attachment frame S40, S45, S50, QC45-4, Universal, QC45-5 S40, S45, S50, QC45-4, Universal, QC45-5

Dimensions

Compactors

Product sheet
Download

The products in the photos may have additional accessories and features. Technical data and weights may vary depending on the configuration and equipment. We reserve the right to change specifications or designs without prior notice and assume no responsibility for any actual errors that may occur. There may be variations in product programs and equipment standards between the markets. For more information concerning current product specifications, local adaptations and special equipment, please contact your nearest sales office.
