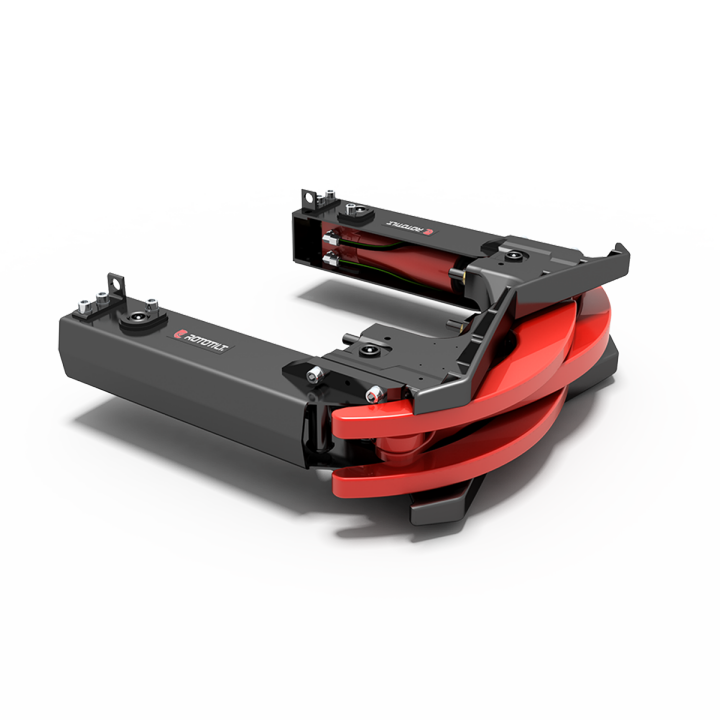

Grapple module RG400

Robotilt's Grapple module is an efficient picking and handling tool which makes your excavator even more versatile, and can be used for most types of grapple tasks: pipe laying, paving, light sorting, etc.

The Grapple module has rounded prongs which close fully and are also removable. When you supplement your Rototilt® with a Grapple module, you have an efficient, integrated tool that neither affects height nor limits the bucket movements when the Grapple is not in use. A "friend" that is always there by your side. Ready for action when you need an extra hand.


Some of the advantages

Good grip – Powerful curved grapple prongs (three-finger prongs) give extremely steady grip; nothing will come lose or turn.

Generous grip width – opens out to a maximum.

The quick coupler and Rototilt® model govern the choice of grapple.

Quick installation/removal (can be retrofitted to an existing Rototilt® with a prepared attachment fitting).

Robust grapple prongs.

Heavy duty piston rods – robust design withstands wear and shock.

Compact and low weight – slimline design without unnecessary weight.

Pilot-operated check valves – maintain grip even if pressure suddenly drops.

Easy to service – on-site lubrication or Grapple module removal avoids downtime.

Technical data

Weight 79 lb 36 kg
Max hydraulic pressure 3626 psi 25 MPa
Grapple force, max open 989 lbf 4.4 kN
Grapple force, jaw to jaw 1596 lbf 7.1 kN
Max lifting capacity 661 lb 300 kg
Quick coupler S40, HS03 S40, HS03

Dimensions

RG400
A 12,2 in 310 mm
B 5,08 in 129 mm
C 6,46 in 164 mm
F 9,17 in 233 mm
G 18,15 in 461 mm
H 16,3 in 414 mm
I 17,36 in 441 mm
J 15,31 in 389 mm
K 12,4 in 315 mm

Grapple module

Product sheet
Download

Quick couplers

  • S40
  • HS03
