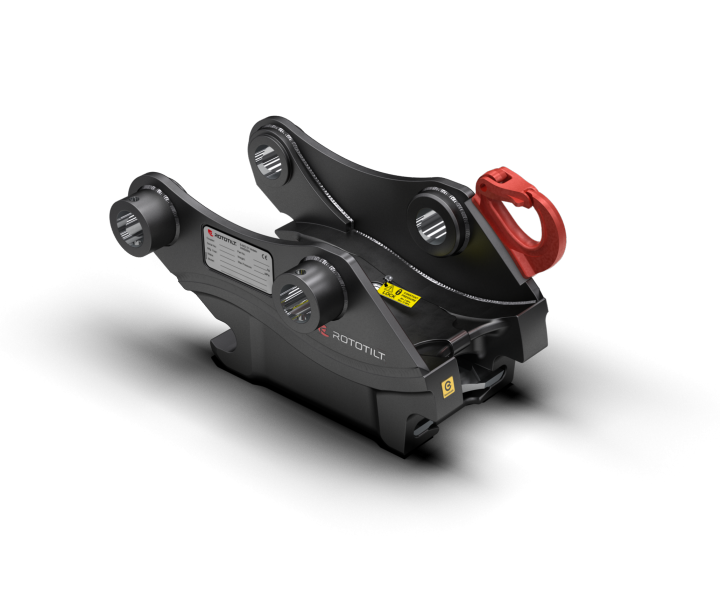

As each excavator has its own excavation geometry, it is important with an adapted machine coupler dimensioned to support this. The design with welded side plates ensures that the machine coupler is optimised according to the size of base machine/excavator

Rototilt’s machine couplers are manufactured with a shell of quenched and tempered cast steel with a wide attachment for a long service life. A heavy-duty locking wedge design gives a completely play-free machine coupler with well protected and few component parts

Technical data

Weight, from 68 lb 31 kg
Permitted lock pressure, min 435 psi 30 bar
Permitted lock pressure, max 1740 psi 120 bar
Opening pressure 4351 psi 300 bar
Permitted positive torque 25815 ft.lb 35 kNm
Permitted max. load, lift hook 4409 lb 2000 kg
Max. weight class, base machine/excavator 13230 lb 6000 kg


C 11,8 in 299,8 mm
P Ø1,57 in Ø40 mm
W 7,8 in 198 mm

The products in the photos may have additional accessories and features. Technical data and weights may vary depending on the configuration and equipment. We reserve the right to change specifications or designs without prior notice and assume no responsibility for any actual errors that may occur. There may be variations in product programs and equipment standards between the markets. For more information concerning current product specifications, local adaptations and special equipment, please contact your nearest sales office.
