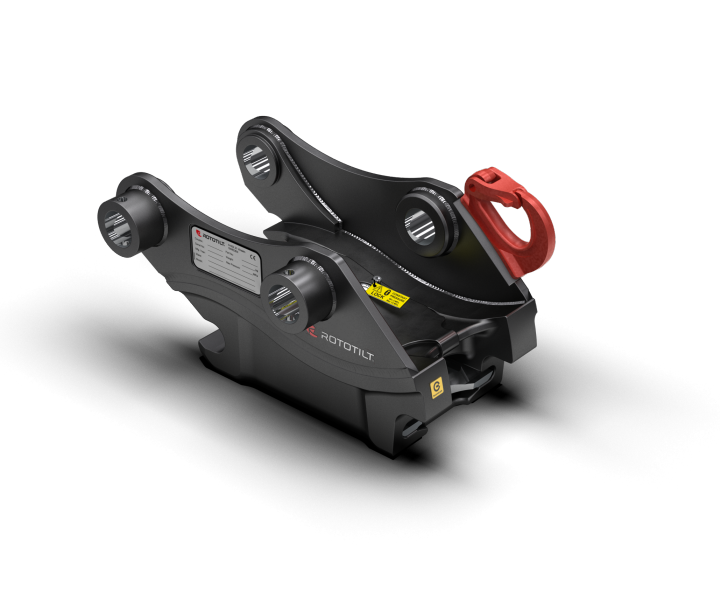

Machine Coupler S50
As each excavator has its own excavation geometry, it is important with an adapted machine coupler dimensioned to support this. The design with welded side plates ensures that the machine coupler is optimised according to the size of base machine/excavator.
Rototilt’s machine couplers are manufactured with a shell of quenched and tempered cast steel with a wide attachment for a long service life. A heavy-duty locking wedge design gives a completely play-free machine coupler with well protected and few component parts.
Technical data
Weight, from | 132 lb 60 kg |
---|---|
Permitted lock pressure, min | 435 psi 30 bar |
Permitted lock pressure, max | 1740 psi 120 bar |
Opening pressure | 5076 psi 350 bar |
Permitted positive torque | 47940 ft.lb 65 kNm |
Permitted max. load, lift hook | 6614 lb 3000 kg |
Max. weight class, base machine/excavator | 24250 lb 11000 kg |
Dimensions


MC-S50 | ||
---|---|---|
C | 16,92 in | 429,8 mm |
P | Ø1,97 in | Ø50 mm |
W | 10,55 in | 268 mm |
The products in the photos may have additional accessories and features. Technical data and weights may vary depending on the configuration and equipment. We reserve the right to change specifications or designs without prior notice and assume no responsibility for any actual errors that may occur. There may be variations in product programs and equipment standards between the markets. For more information concerning current product specifications, local adaptations and special equipment, please contact your nearest sales office.
