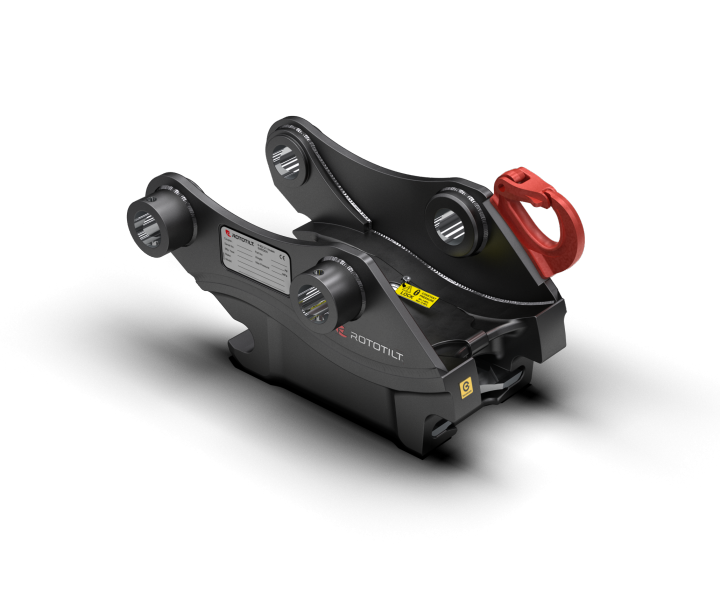

Machine Coupler S70

As each excavator has its own excavation geometry, it is important with an adapted machine coupler dimensioned to support this. The design with welded side plates ensures that the machine coupler is optimised according to the size of base machine/excavator.

Rototilt’s machine couplers are manufactured with a shell of quenched and tempered cast steel with a wide attachment for a long service life. A heavy-duty locking wedge design gives a completely play-free machine coupler with well protected and few component parts.


Technical data

Weight, from 452 lb 205 kg
Permitted lock pressure, min 30 bar 30 bar
Permitted lock pressure, max 120 bar 120 bar
Opening pressure 350 bar 350 bar
Permitted positive torque 221270 ft.lb 300 kNm
Permitted negative torque 143825 ft.lb 195 kNm
Permitted max. load, lift hook 17635 lb 8000 kg
Max. weight class, base machine/excavator 66140 lb 30000 kg

Dimensions

MC-S70
C 23,62 in 600 mm
P 2,76 in 70 mm
W 17,64 in 448 mm

The products in the photos may have additional accessories and features. Technical data and weights may vary depending on the configuration and equipment. We reserve the right to change specifications or designs without prior notice and assume no responsibility for any actual errors that may occur. There may be variations in product programs and equipment standards between the markets. For more information concerning current product specifications, local adaptations and special equipment, please contact your nearest sales office.
