Railroad grapple RR820

Rototilt’s railroad grapple is engineered for those heavier jobs with a design that makes it the optimal choice for handling sleepers and rails, for example. Its smart design also makes the grapple extremely light and strong.

The grapple cylinders are equipped with load-holding valves for improved safety should the hydraulic system lose pressure. With Rototilt's other safety solutions, such as ICS SecureLock™ on both machine couplers and tiltrotators, you can work both safely and efficiently.

Another benefit of the design is that the grapple is detachable. Rototilt's matching quick couplers are compatible both with the railroad grapple and Rototilt’s other grapple modules. The railroad grapple can be mounted at the same time as you’re using Rototilt's other tools. This makes work much more flexible when you need to quickly switch between various tools for different types of jobs.

  • Angled 40° for more efficient grapple work
  • Perfect for those heavier jobs on railroads, for example
  • Smart design makes the grapple both strong and light
  • Load-holding valves for maximum safety
  • Optimized for use with Rototilt’s tools and control systems
  • Max. lifting capacity, 5000 kg
  • Detachable

Technical data

Weight 353 lb 160 kg
Max. hydraulic pressure 3626 psi 25 MPa
Grapple width 32 in 820 mm
Max. lifting capacity 11025 lb 5000 kg
Grapple force, tip-to-tip 6744 lbf 30 kN
Grapple force, max open 4496 lbf 20 kN
Attachment frame S45, S60, QC60-5, QC45-5 S45, S60, QC60-5, QC45-5

Dimensions

RR820

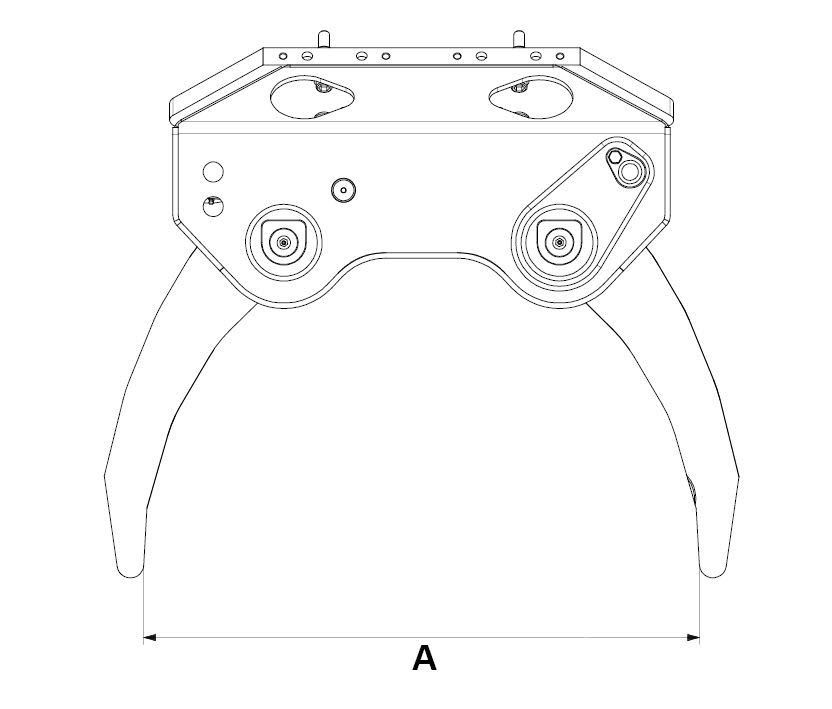

A Ø32,28 in Ø820 mm

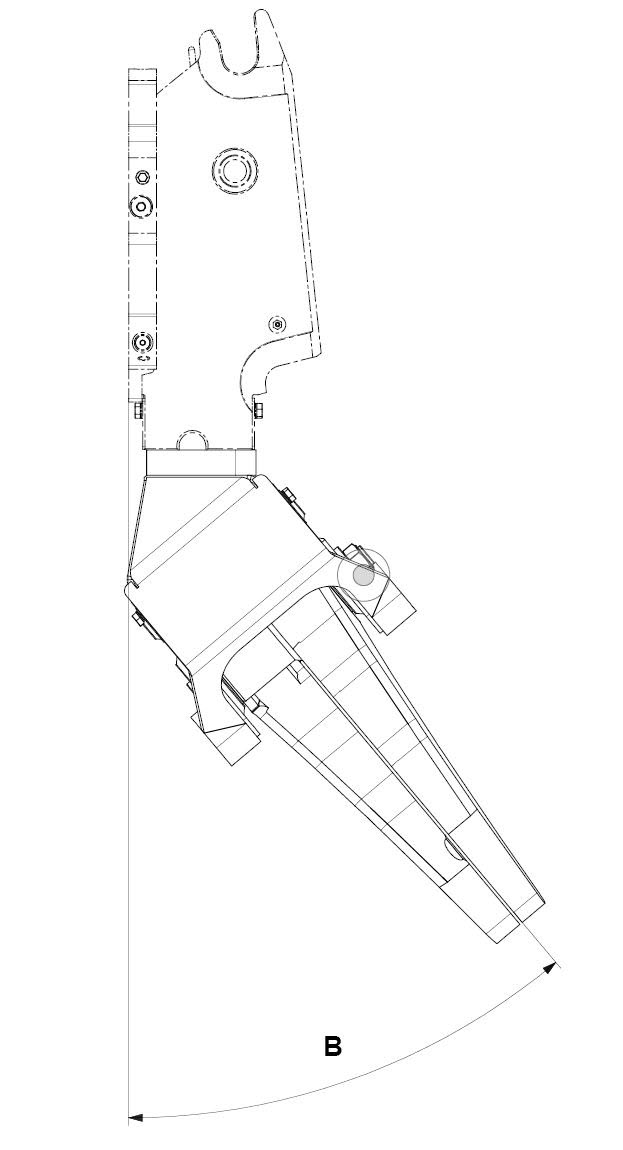

B 40° 40°

The products in the photos may have additional accessories and features. Technical data and weights may vary depending on the configuration and equipment. We reserve the right to change specifications or designs without prior notice and assume no responsibility for any actual errors that may occur. There may be variations in product programs and equipment standards between the markets. For more information concerning current product specifications, local adaptations and special equipment, please contact your nearest sales office.
