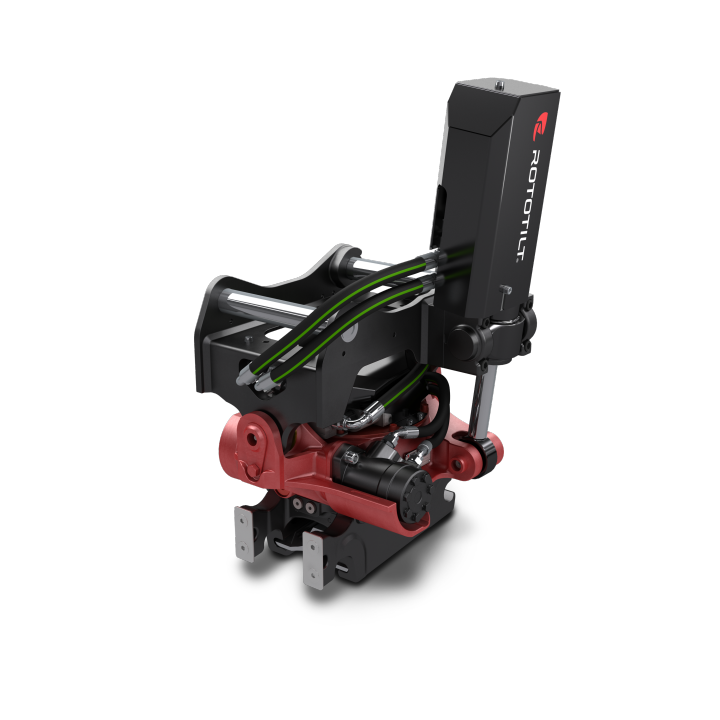

Rototilt® R2

For excavators 3–6.5 tonnes. The R2 is a very powerful tiltrotator for its size class. This means a high breakout force and high flow capacity. A big advantage is that you can use the smart control system ICS.

The advantages of the R2 are many. The design is based on the same concept as for the larger tiltrotators with an integrated swivel. This means reduced hose routing and increased flow capacity.

  • ICS – User-friendly and reliable control system with major flexibility
  • Power to spare with high breakout force
  • Efficient hydraulics and the tiltrotator’s low weight minimises the machine’s fuel consumption.
  • The R2 allows double the flow volume for the extra function.

‹‹ Powerful worm gear

Large bearing surfaces effectively absorb and distribute excavation forces.

Right cast goods at the right place ››

A cast rotor housing is both stronger and lighter than welded alternatives. The thickness of the casting is optimised according to the load on the various parts.

‹‹ Smart attachment frame

With a direct attachment frame, you get lower overall costs, lower weight and more digging power. For maximum flexibility, we have developed our own, patented multi-attachment frame.

‹‹ Excellent safety

All solutions and parts are tested to maximise safety, durability and ease of use. From quality assurance of all component parts, to control systems, couplings and tool locking. With SecureLock™ you can be sure that your tools are correctly attached from the start and that they stay that way.

‹‹ Smart control systems

With Rototilt® you can choose the control system that optimises your excavator and contributes to increased performance, better handling and more options for settings. Choose between ICSTLE and TE. Your tiltrotator works optimally even in very difficult operating conditions.

Protected hydraulic motor ››

The specially designed guard for the hydraulic motor is integrated with the cast rotor housing and protects it against impact and shocks from beneath

‹‹ Electric swivel

With an electric swivel (optional), you can control the valves on the tools coupled to your tiltrotator. In this way, even more advanced tools can be used.

Stability and strength ››

A very strong bolted joint holds the rotor housing and the quick coupler in a firm grip.

‹‹ Long service life

Sturdy, amply dimensioned pins, shafts and bushings make your tiltrotator from Rototilt® more robust and long-lasting than any other tiltrotator on the market.

‹‹ High performance

Rototilt's tiltrotators work with higher system pressure than other brands on the market. This provides better performance for all functions – such as for important tilt and torque manoeuvres, and more clamping force when using a grapple.

Technical data

Machine weight, max 6614 - 14330 lb 3000 - 6500 kg
Max bucket width 47 in 1200 mm
Max breakout force 11240 lbf 50 kN
Max breakout torque 31715 ft.lb 43 kNm
Weight (from) 375 lb 170 kg
Tilt angle (2x) 40° 40°
Rotation speed (1 rotation per) 7.0 s at 7.9 gpm 7.0 s at 30 l/min
Working pressure 3626 psi 25 MPa
Max return line pressure 290 psi at 21 gpm 2.0 MPa at 80 l/min
Min hydraulic flow 12 gpm 45 l/min
Recommended hydraulic flow 21 gpm 80 l/min
Number of lubrication points 1 1
Turning torque 2876 ft.lb at 3626 psi 3900 Nm at 25 MPa
Tilt torque double acting cylinders 10620 ft.lb 14400 Nm
