The Rototilt® R2 tiltrotator is designed for smaller excavators weighing between 3-6.5 tonnes. The R2 is very powerful for its size class, with a high breakout torque and a large flow capacity for the use of hydraulic tools under the tiltrotator. However, the Rototilt R2 offers many more advantages than that. The tiltrotator’s design is based on the same concept as our larger models with an integrated swivel. As a machine contractor, this means that you benefit from reduced hose routing and increased flow capacity. The tiltrotator’s efficient hydraulics and low weight can also minimise the machine’s fuel consumption.

Technical specification

Machine weight, min-max 3000 - 6500 kg 3000 - 6500 kg
Weight (from) 175 kg 175 kg
Bucket width, max 1200 mm 1200 mm
Breakout force, max 50 kN 50 kN
Breakout torque, max 43 kNm 43 kNm
Tilt angle (2x) 40 ° 40 °
Rotation speed (1 revolution in) 7.0 s at 30 l/min 7.0 s at 30 l/min
Working pressure 25 MPa 25 MPa
Recommended hydraulic flow, min 42 l/min 42 l/min
Number of lubrication points 3 3
Rotation torque 3900 Nm 3900 Nm
Tilting torque, double-acting cylinders 14400 Nm 14400 Nm

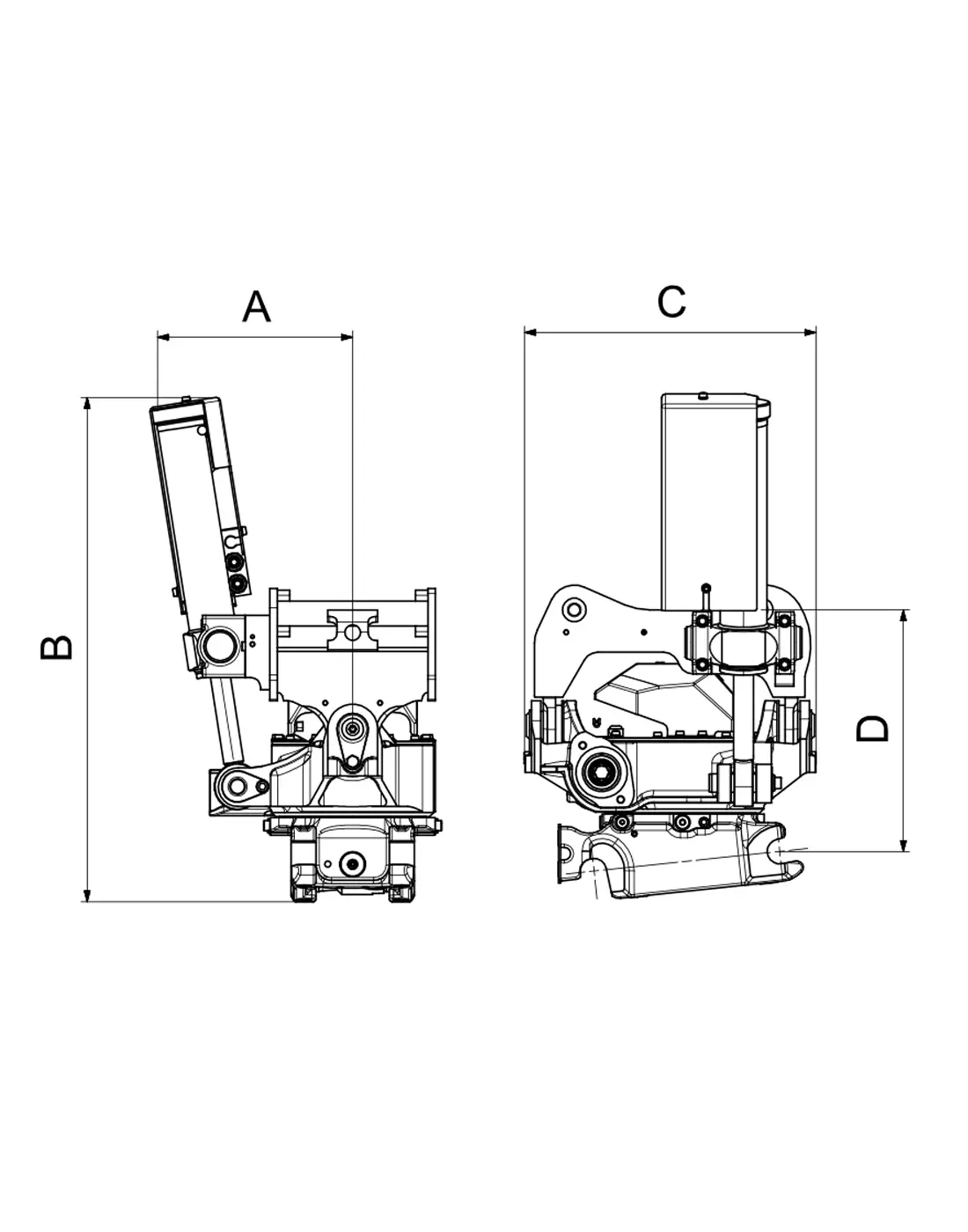

Dimension A, Width 314 mm 314 mm
Dimension B, Installation height total 810 mm 810 mm
Dimension C, Length 468 mm 468 mm
Dimension D, Installation height 389 mm 389 mm
