Meet the Rototilt® R3, specially developed for excavators weighing between 6-12 tonnes and to cope with breakout torques of 85 kNm. The Rototilt® R3 is tailored for compact machines – an increasingly popular segment of the excavator market. In addition to the tiltrotator’s advantages in terms of increased flexibility and the ability to take on more types of assignments, you gain access to even more functions. The design has an integrated swivel with the potential for high-flow and electric swivel, well-integrated central lubrication and load-holding valves on the tilt cylinders. The hydraulic system is adapted for 250 bar to ensure maximum performance. Efficient hydraulics and the tiltrotator’s low weight can also minimise the machine’s fuel consumption. You gain even more benefits when you combine the tiltrotator with the QuickChange™ quick coupler system and the SecureLock™ safety solution.

Technical specification

Machine weight, min-max 6000 - 12000 kg 6000 - 12000 kg
Weight (from) 300 kg 300 kg
Bucket width, max 1500 mm 1500 mm
Breakout force, max 81 kN 81 kN
Breakout torque, max 85 kNm 85 kNm
Tilt angle (2x) 40 ° 40 °
Rotation speed (1 revolution in) 7.0 s at 50 l/min 7.0 s at 50 l/min
Working pressure 25 MPa 25 MPa
Recommended hydraulic flow, min 69 l/min 69 l/min
Number of lubrication points 6 6
Rotation torque 6100 Nm 6100 Nm
Tilting torque, single-acting cylinders 21500 Nm 21500 Nm
Tilting torque, double-acting cylinders 26500 Nm 26500 Nm

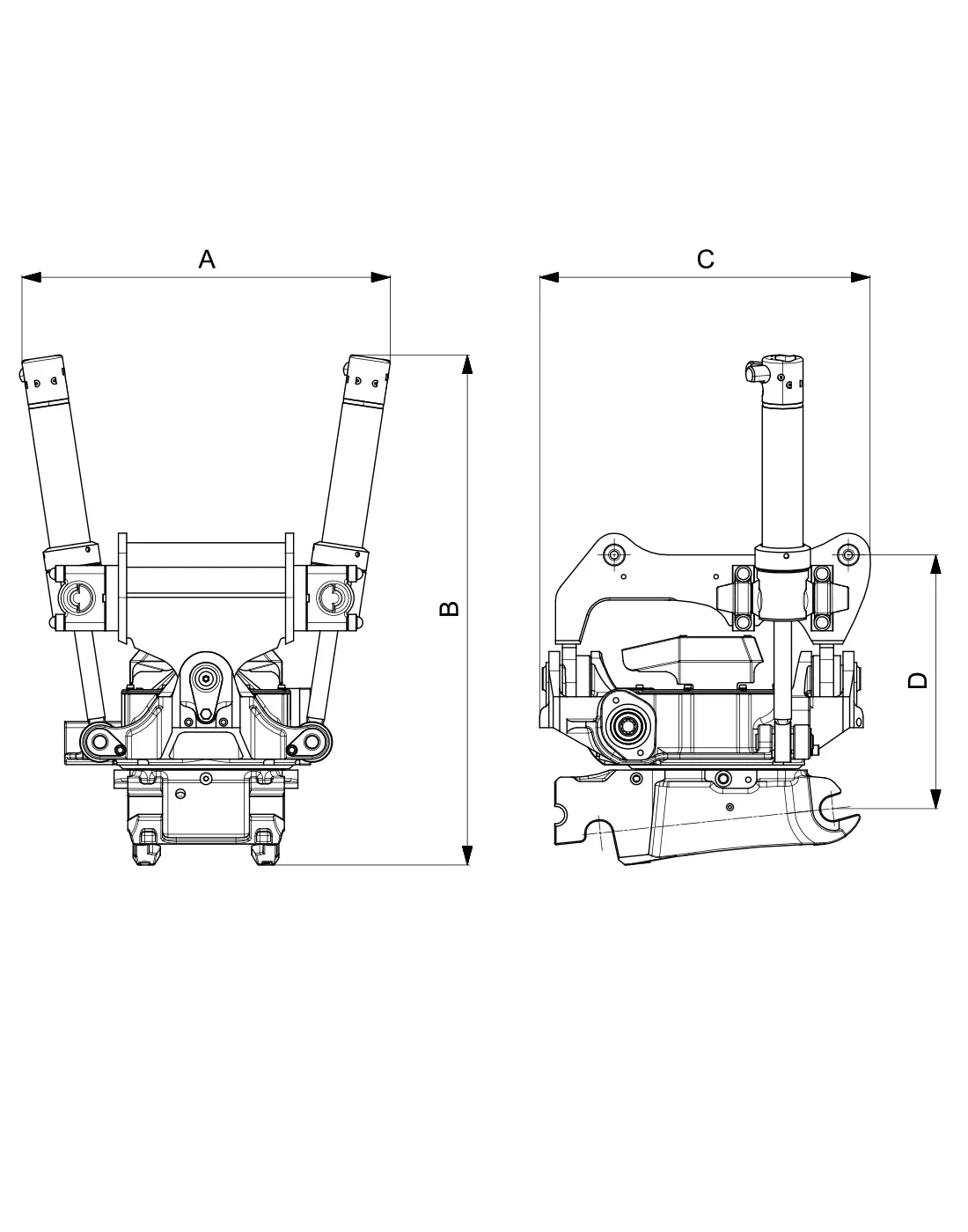

Dimension A, Width 677 mm 677 mm
Dimension B, Installation height total 939 mm 939 mm
Dimension C, Length 607 mm 607 mm
Dimension D, Installation height 467 mm 467 mm
