RC6

The RC6 is tailored for excavators weighing between 15-24 tonnes. It is a durable tiltrotator which, just like our other models, is designed to cope with harsh conditions over a prolonged period of use, and can handle breakout torques of up to 255 kNm. Tiltrotators in the RC series have been designed for your operating experience, energy efficiency and versatility. With pressure-compensated hydraulics, you can use the tiltrotator’s functions independently of each other to deliver optimum precision. In addition, thanks to the RC™ System proportional control system, you can control all the functions in one and the same excavation movement.

With the RC series, we have also created better conditions for you to work with high-flow functions, and extended your potential to use accessories that place high demands as regards hydraulic flows. You also gain access to Rototilt’s other functions and properties, such as a rotor housing cast in a single piece and oil-filled for maximum lubrication, minimal wear and an extremely long service life. You enjoy even more benefits in combination with the optional RC™ Joysticks and QuickChange™, as well as the SecureLock™ safety lock, which is always included as standard.

Technical specification

Machine weight, min-max	17000 - 24000 kg 17000 - 24000 kg
Bucket width, max	1800 mm 1800 mm
Breakout force, max	170 kN 170 kN
Breakout torque, max	255 kNm 255 kNm
Tilt angle (2x)	40 ° 40 °
Rotation speed (1 revolution in)	7.0 s at 72 l/min 7.0 s at 72 l/min
Working pressure	25 MPa 25 MPa

Recommended hydraulic flow, min	121 l/min 121 l/min
Rotation torque	9550 Nm 9550 Nm
Tilting torque, double-acting cylinders	56600 Nm 56600 Nm

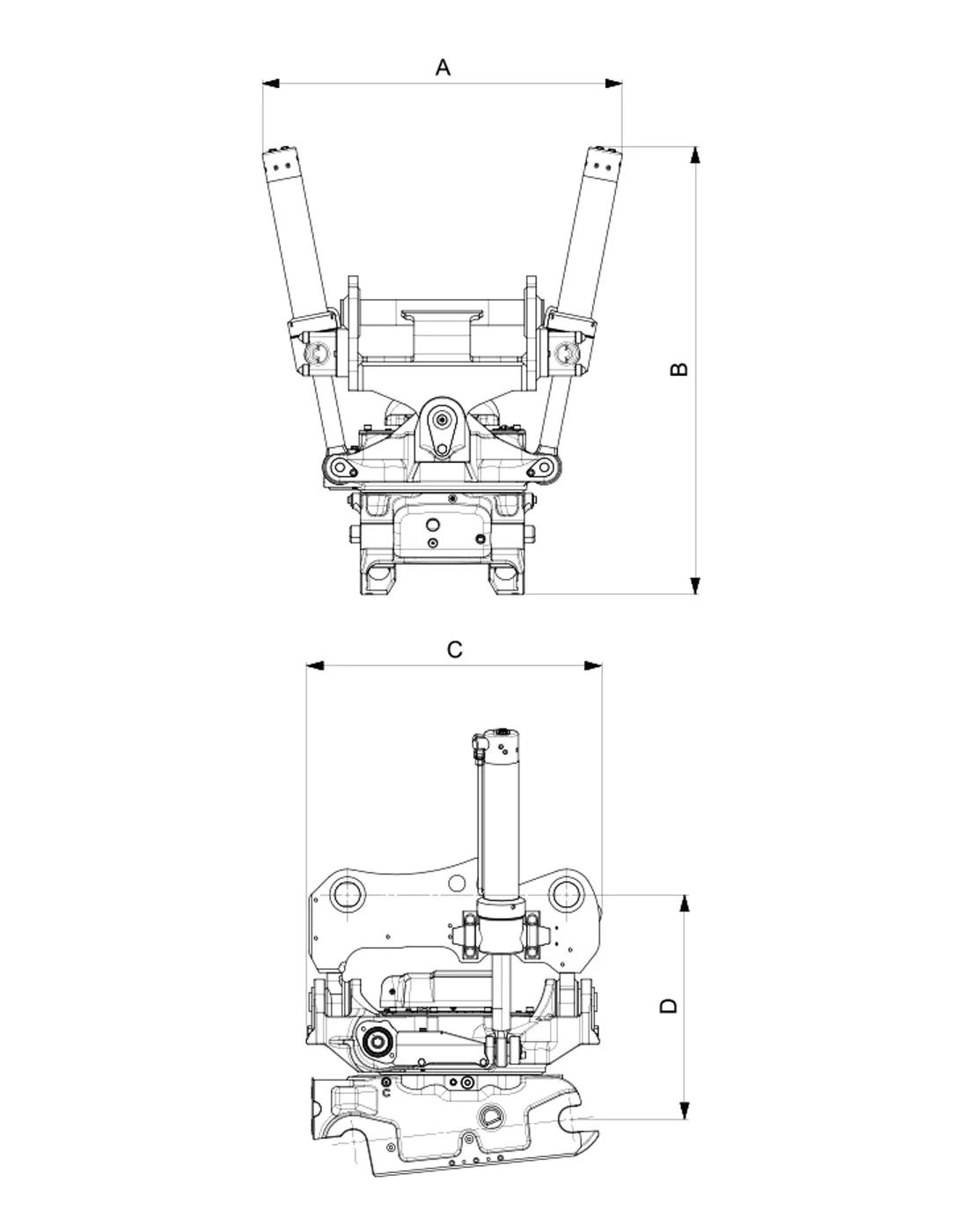

Dimension A, Width	986 mm 986 mm
Dimension B, Installation height total	1229 mm 1229 mm
Dimension C, Length	808 mm 808 mm
Dimension D, Installation height	616 mm 616 mm

We reserve the right to change specifications or designs without prior notice, and make reservations for any factual errors. Variations in the product range and equipment standards may occur from market to market. For more information concerning current product specifications, local adaptations and special equipment, please contact your nearest sales office.

The advantages of pressure-compensated hydraulics

RC4-RC9 have newly developed pressure-compensated hydraulics. This allows the tiltrotator’s various functions to work independently of each other in order to provide precise control of tilt and rotation, even if you want to operate these at different speeds. This becomes even clearer when you are using both functions at the same time. When the tilt function is operating in the maximum position, rotation can continue at the same speed as before. As a result, tiltrotators in the RC™ series provide you with optimum parallel operation, as you do not need to take the speed of rotation and tilt into account. Your operating experience becomes smoother and your movements more controlled, allowing greater precision and better results in all your tasks in the long run.

Your tiltrotator as a part of Rototilt® QuickChange™

With QuickChange™, you can change hydraulic tools automatically without leaving the cab. When you work with QuickChange™ in both the attachment frame at the top and the quick coupler at the bottom, you can disconnect and connect the tiltrotator or switch between different hydraulic tools quickly, easily and safely, depending on which task you have in front of you. You can also mount your tiltrotator directly on the machine and get QuickChange™ functionality for the quick coupler for rapid hydraulic tool changes. The SecureLock™ safety solution is also always included. With a tiltrotator from the RC series, you can always choose to upgrade to QuickChange™ at a later stage.

Match with your machine

In Rototilt’s product guide, you can match products with your machine and build your own tiltrotator system, from machine coupler to tiltrotator and tool.
