The Rototilt® RC9 is our largest tiltrotator, optimised for large excavators weighing between 32-43 tonnes. The RC9 also transforms the really large machines into powerful and flexible tool carriers, allowing you to take on even more tasks. This tiltrotator can handle really large hydraulic flows and has an impressive 500 kNm breakout torque. With the newly developed pressure-compensated hydraulics, you can use the tiltrotator’s functions independently of each other to deliver optimum precision.
The RC9 has a powerful worm gear to cope with significant stresses and provide maximum torque, as well as extra hydraulics for a grapple module and other hydraulic tools, for example. In addition, thanks to the RC™ System proportional control system, you can control all the functions in one and the same excavation movement. You also gain access to Rototilt’s other functions and properties, such as a rotor housing cast in a single piece and oil-filled for maximum lubrication, minimal wear and an extremely long service life. You enjoy even more benefits in combination with the optional RC™ Joysticks and QuickChange™, as well as the SecureLock™ safety lock, which is always included as standard.
|Machine weight, min-max||32000 - 43000 kg 32000 - 43000 kg|
|Weight (from)||1480 kg 1480 kg|
|Bucket width, max||2400 mm 2400 mm|
|Breakout force, max||280 kN 280 kN|
|Breakout torque, max||500 kNm 500 kNm|
|Tilt angle (2x)||40 ° 40 °|
|Rotation speed (1 revolution in)||8.0 s at 126 l/min 8.0 s at 126 l/min|
|Working pressure||35 MPa 35 MPa|
|Recommended hydraulic flow, min||206 l/min 206 l/min|
|Number of lubrication points||2 2|
|Rotation torque||19100 Nm 19100 Nm|
|Tilting torque, double-acting cylinders||90000 Nm 90000 Nm|

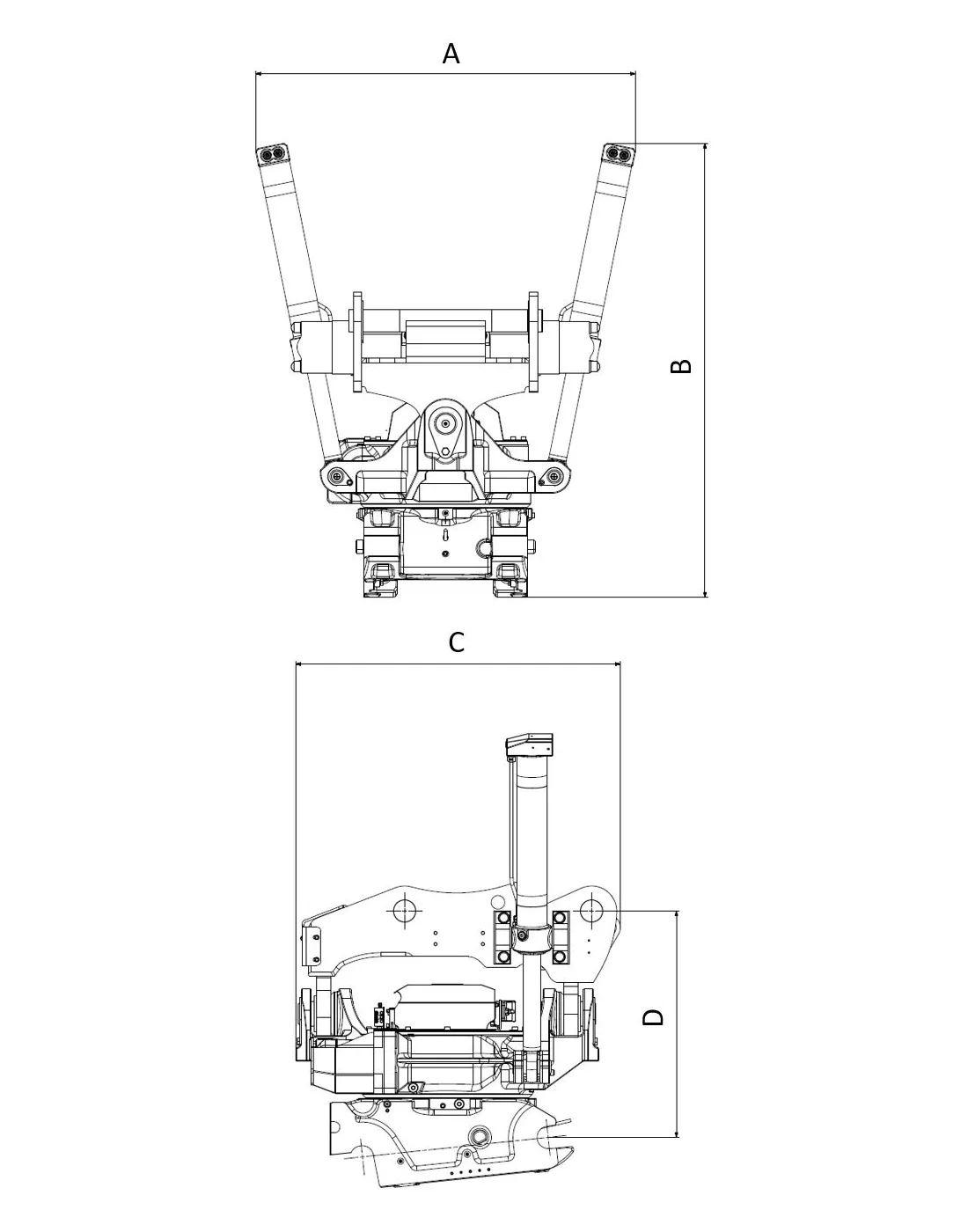

|Dimension A, Width||1363 mm 1363 mm|
|Dimension B, Installation height total||1582 mm 1582 mm|
|Dimension C, Length||1164 mm 1164 mm|
|Dimension D, Installation height||773 mm 773 mm|
We reserve the right to change specifications or designs without prior notice, and make reservations for any factual errors. Variations in the product range and equipment standards may occur from market to market. For more information concerning current product specifications, local adaptations and special equipment, please contact your nearest sales office.
With QuickChange™, you can change hydraulic tools automatically without leaving the cab. When you work with QuickChange™ in both the attachment frame at the top and the quick coupler at the bottom, you can disconnect and connect the tiltrotator or switch between different hydraulic tools quickly, easily and safely, depending on which task you have in front of you. You can also mount your tiltrotator directly on the machine and get QuickChange™ functionality for the quick coupler to change hydraulic tools quickly. In addition to saving time, this results in a safer working environment for you as a machine operator. The SecureLock™ safety solution is also always included as a standard function.Read more
