Rototilt® RC1 is our smallest tiltrotator, designed for mini excavators and small machines weighing between 1.5-3.5 tonnes. The RC1 has a cast rotor housing and is compatible with the RC™ System control system. A taller attachment frame provides more space for electronics and hydraulics. Unlike earlier tiltrotator series, both ILS central lubrication and the SecureLock™ safety lock are included as standard. A built-in sensor monitors the locking pressure and increases safety, which means that, as a user, you satisfy the requirements set out in EN474.
|Machine weight, min-max||1500 - 3500 kg 1500 - 3500 kg|
|Weight (from)||95 kg 95 kg|
|Bucket width, max||1000 mm 1000 mm|
|Breakout force, max||35 kN 35 kN|
|Breakout torque, max||25 kNm 25 kNm|
|Tilt angle (2x)||40 ° 40 °|
|Rotation speed (1 revolution in)||7.0 s at 15 l/min 7.0 s at 15 l/min|
|Working pressure||25 MPa 25 MPa|
|Number of lubrication points||5 5|
|Rotation torque||1.7 Nm 1.7 Nm|

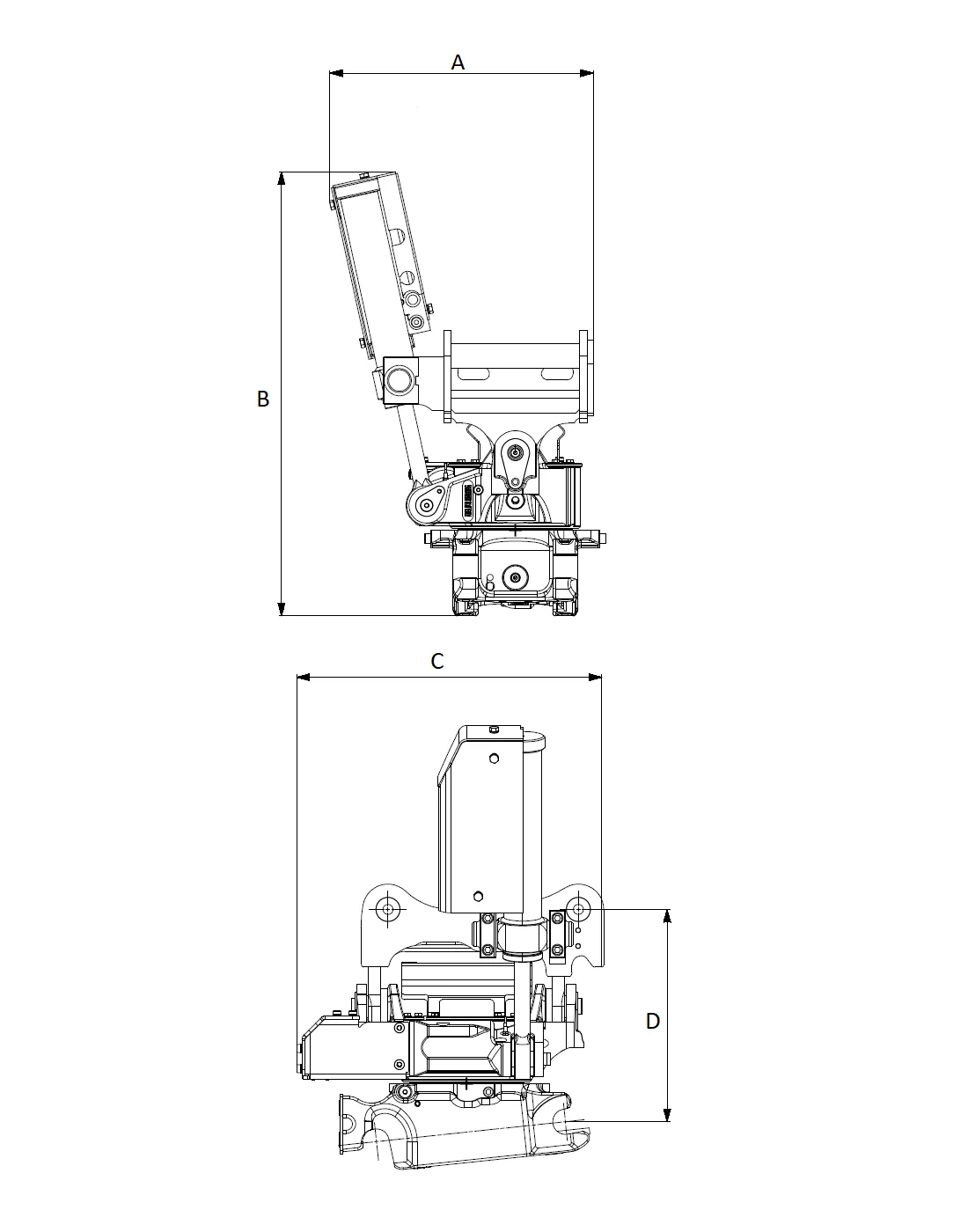

|Dimension A, Width||412 mm 412 mm|
|Dimension B, Installation height total||325 mm 325 mm|
|Dimension C, Length||Ø30 mm Ø30 mm|
|Dimension D, Installation height||260 mm 260 mm|
We reserve the right to change specifications or designs without prior notice, and make reservations for any factual errors. Variations in the product range and equipment standards may occur from market to market. For more information concerning current product specifications, local adaptations and special equipment, please contact your nearest sales office.
