RC3

Rototilt® RC3 has been developed for compact excavators weighing between 6-12 tonnes. Despite its low weight, the RC3 can withstand a breakout torque of up to 85 kNm and a working pressure of up to 25 MPa. The SecureLock™ safety lock is always included as standard.

Technical specification

Machine weight, min-max	6000 - 12000 kg 6000 - 12000 kg
Weight (from)	300 kg 300 kg
Bucket width, max	1500 mm 1500 mm
Breakout force, max	81 kN 81 kN
Breakout torque, max	85 kNm 85 kNm
Tilt angle (2x)	40 ° 40 °
Rotation speed (1 revolution in)	7.0 s at 50 l/min 7.0 s at 50 l/min
Working pressure	25 MPa 25 MPa

Number of lubrication points	5 5
Rotation torque	7.6 Nm 7.6 Nm

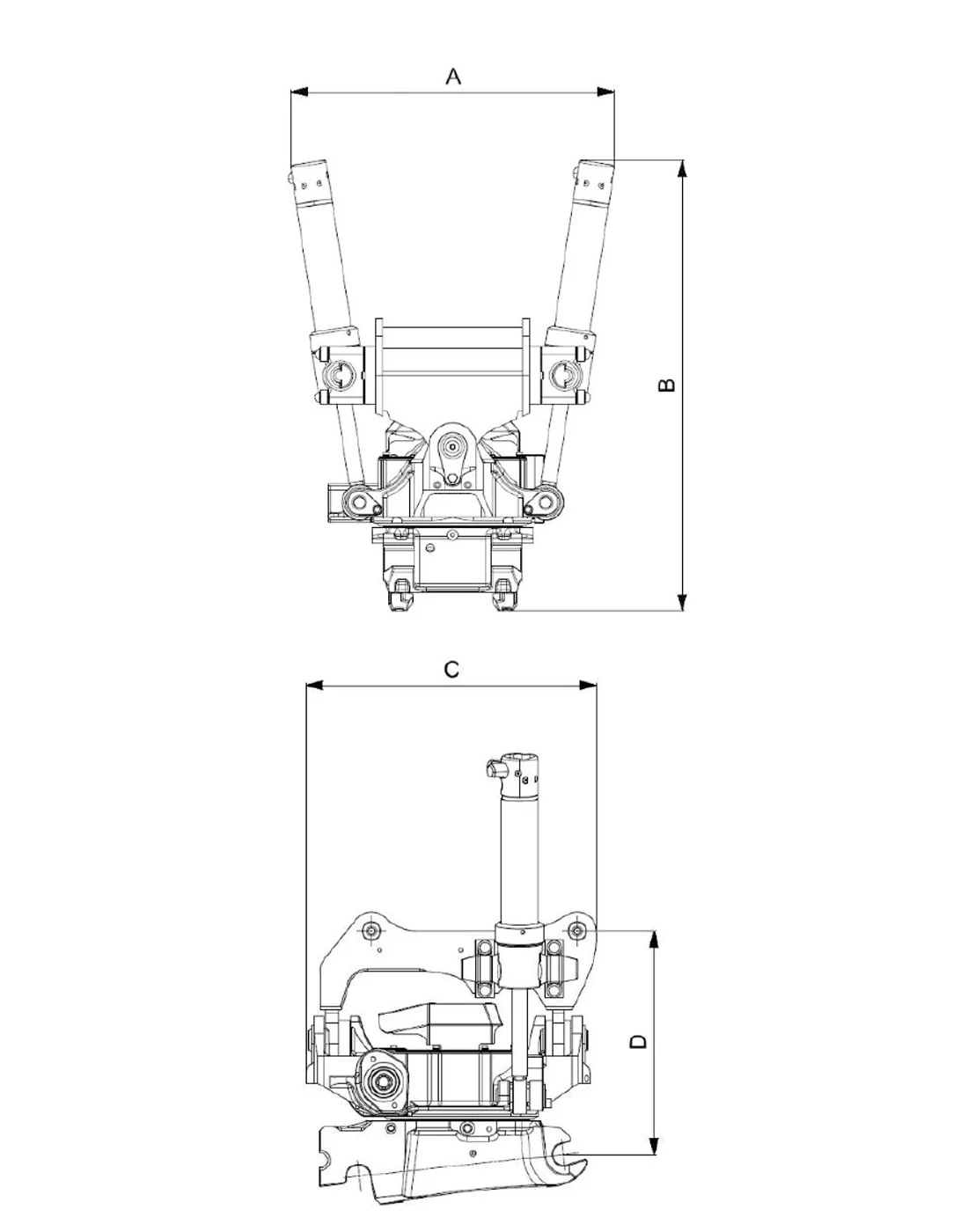

Dimension A, Width	646 mm 646 mm
Dimension B, Installation height total	936 mm 936 mm
Dimension C, Length	679 mm 679 mm
Dimension D, Installation height	504 mm 504 mm

We reserve the right to change specifications or designs without prior notice, and make reservations for any factual errors. Variations in the product range and equipment standards may occur from market to market. For more information concerning current product specifications, local adaptations and special equipment, please contact your nearest sales office.

Your tiltrotator as a part of Rototilt® QuickChange™

With QuickChange™, you can change hydraulic tools automatically without leaving the cab. When you work with QuickChange™ in both the attachment frame at the top and the quick coupler at the bottom, you can disconnect and connect the tiltrotator or switch between different hydraulic tools quickly, easily and safely, depending on which task you have in front of you. You can also mount your tiltrotator directly on the machine and get QuickChange™ functionality for the quick coupler for rapid hydraulic tool changes. The SecureLock™ safety solution is also always included. With a tiltrotator from the RC series, you can always choose to upgrade to QuickChange™ at a later stage.

Match with your machine

In Rototilt’s product guide, you can match products with your machine and build your own tiltrotator system, from machine coupler to tiltrotator and tool.
